JTBD Walkthrough

This guide walks through the full Jobs-To-Be-Done (JTBD) lifecycle that Cairnloop supports out of the box. You can follow every stage interactively by running the example app (cd examples/cairnloop_example && mix setup && mix phx.server) and navigating alongside.

Route convention: All support routes are mounted under the path you pass to cairnloop_dashboard/2 in your router. This guide assumes /support — the example app's default. The customer chat widget lives at /chat.

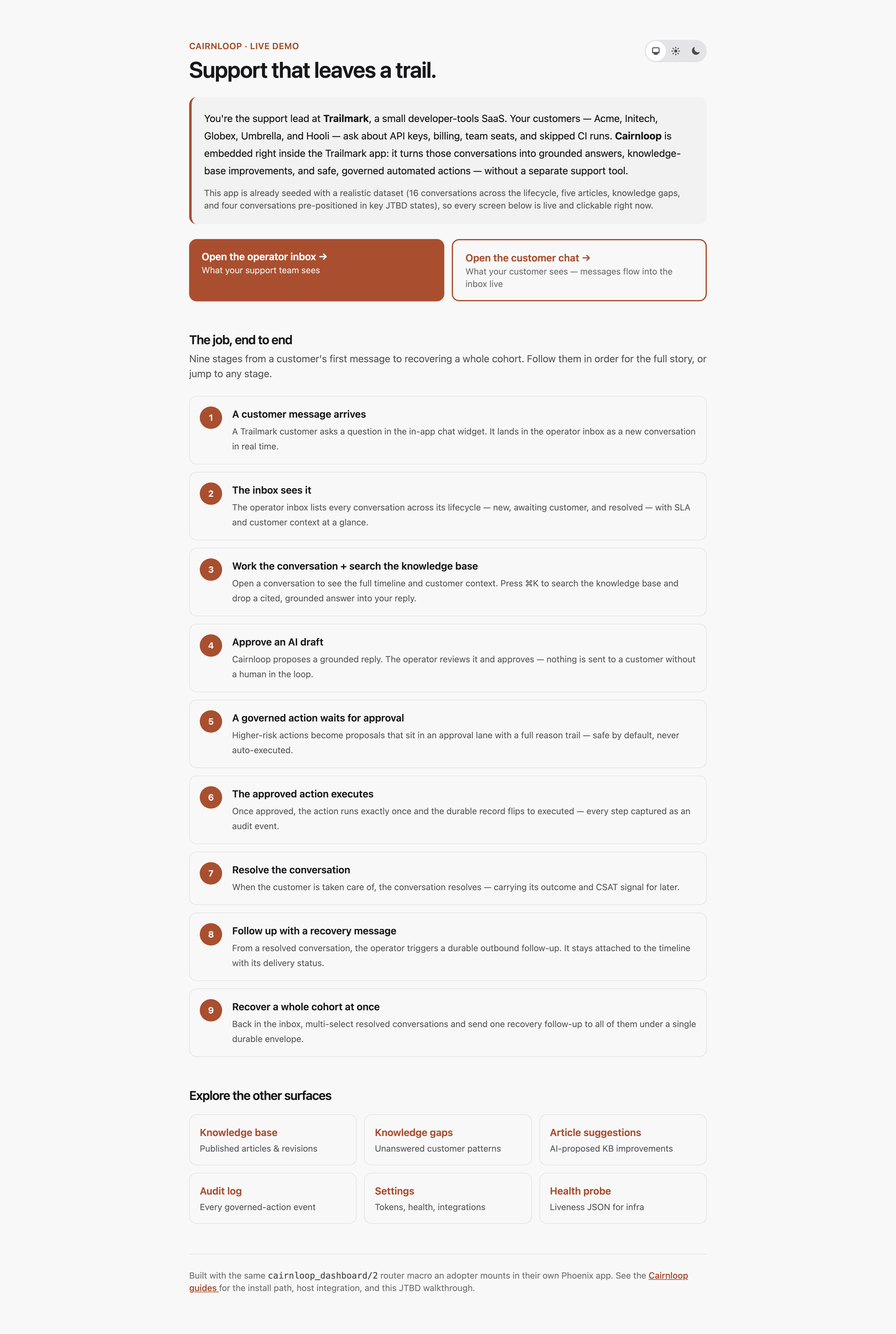

The example app opens on a guided demo index that frames the scenario and links to every stage below — a good place to start clicking around:

The screenshots in this guide are captured from the seeded example app. To refresh them, see examples/cairnloop_example/screenshots/.

Stage 1: Seed — a customer message arrives

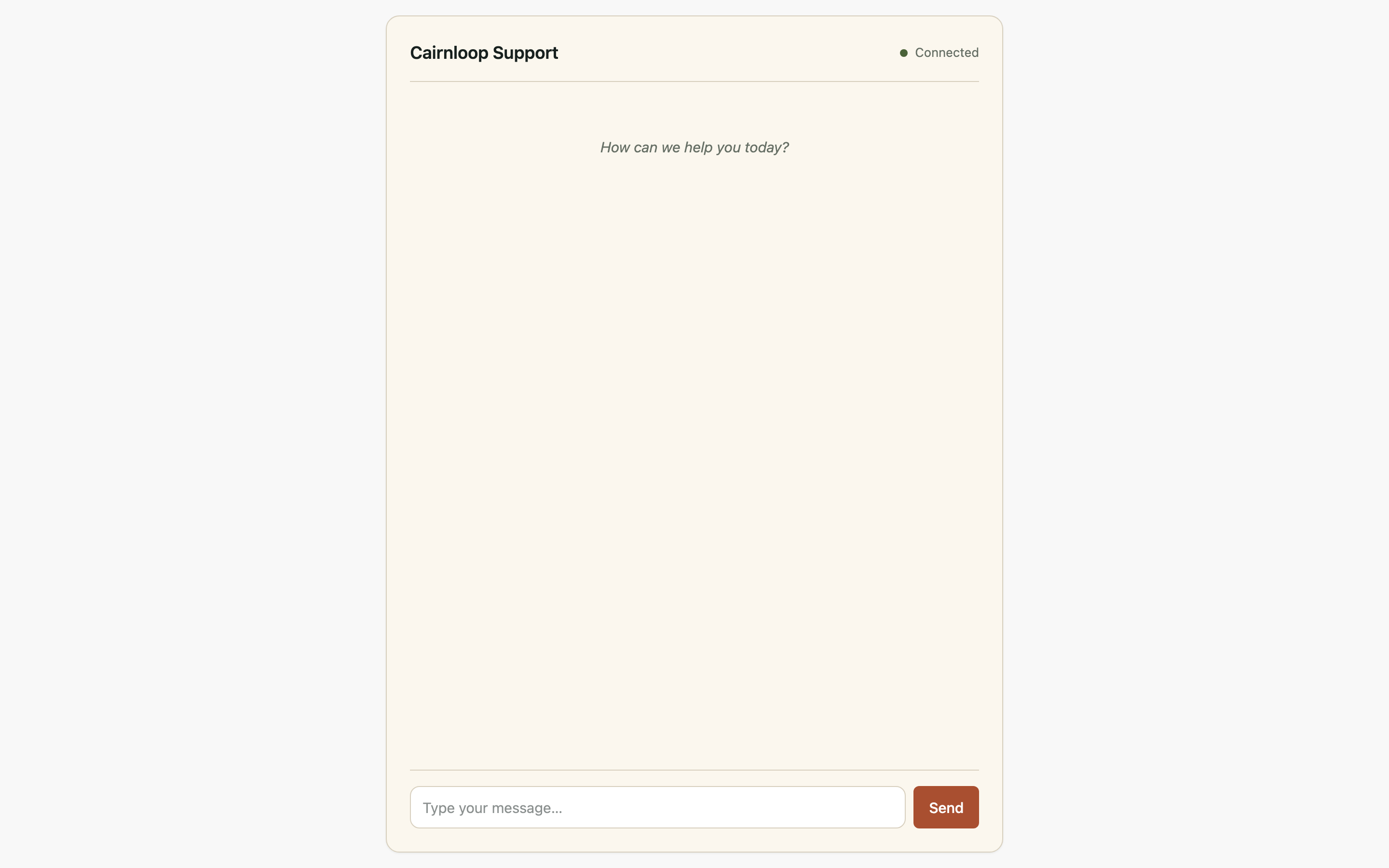

A customer submits a message through the embedded chat widget at /chat. On the customer side, the Phoenix Channel (Cairnloop.Channels.WidgetSocket) receives the payload, persists a new Conversation row with status :open, and appends an initial Message record with role :user.

No operator action is needed at this point. Cairnloop has recorded the inbound event durably in Ecto. From here, the conversation is visible across any operator session.

Stage 2: Inbox sees the conversation

The operator navigates to /support. The inbox rendered by Cairnloop.Web.InboxLive loads all conversations the current operator can see.

Screen region: The inbox lists the seeded conversations spanning all status states — new, open, awaiting customer, and resolved. Each row shows the conversation subject, the customer identifier, the time since the last message, and a status chip. The just-seeded conversation appears at or near the top of the list.

At this stage, the operator can orient themselves across the support queue before selecting a conversation to work.

Stage 3: Conversation workspace — cmd+k search and citation chip

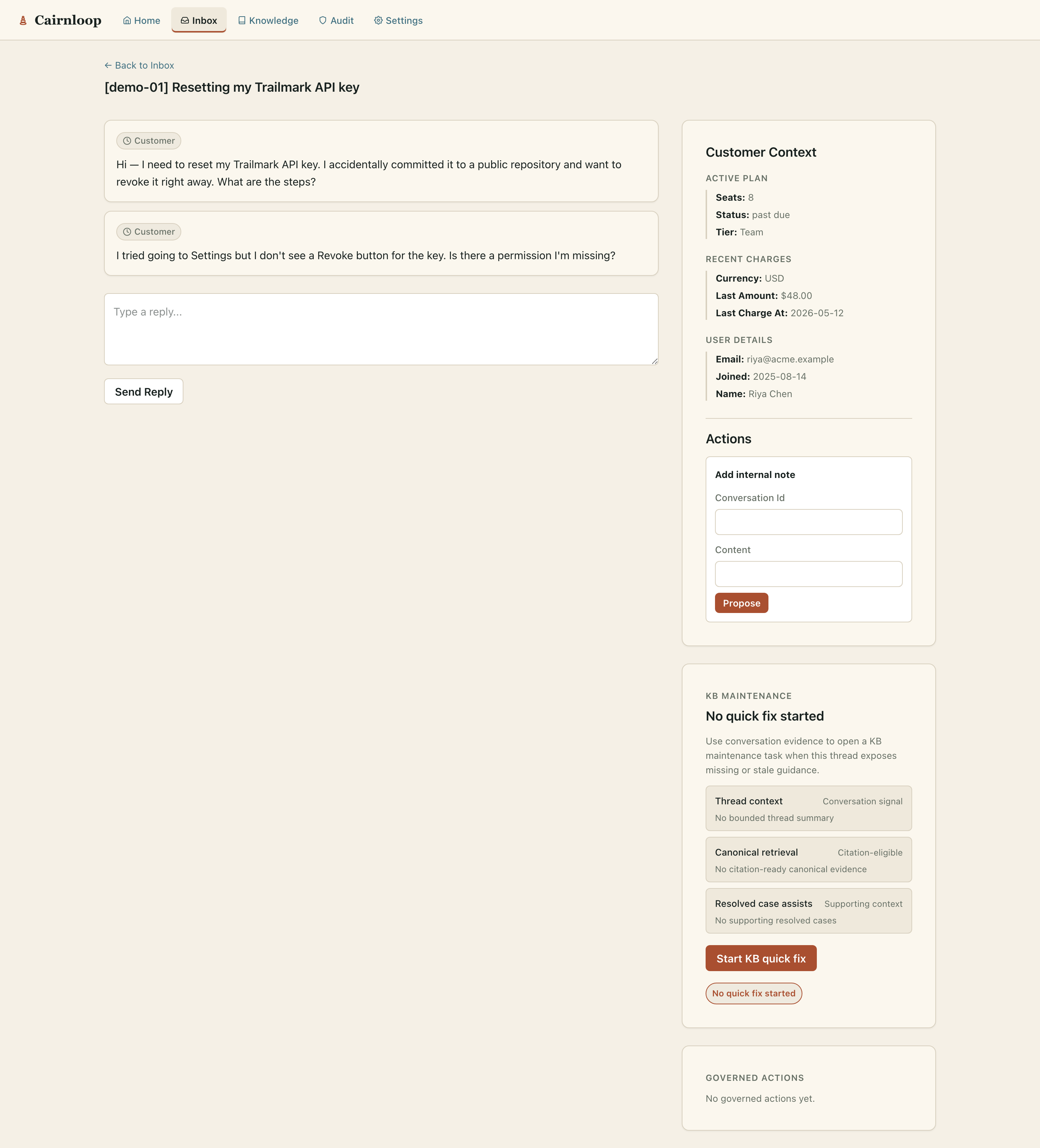

The operator clicks a conversation row and is taken to /support/:id — the conversation workspace rendered by Cairnloop.Web.ConversationLive.

Screen region: The workspace splits into a main column (the conversation timeline: customer messages, operator replies, AI draft cards, action event cards, and outbound bubbles) and a right rail (customer context from ContextProvider, SLA status, governed-action history).

The operator presses cmd+k to open the search palette. They type a query — for example, "refund" — and Cairnloop retrieves matching Knowledge Base articles and resolved support evidence via the retrieval backend. Results appear with source, recency, and trust cues.

Screen region: The cmd+k modal shows a list of retrieval results. Each result card displays the article title, a short content excerpt, the source type (knowledge base or resolved case), and a trust level chip. Clicking a result activates it and places a citation chip in the operator's draft compose area.

The citation chip links the operator's eventual reply back to a grounded retrieval source — meaning no freeform AI output leaves the thread without an auditable evidence anchor.

Stage 4: Approve AI draft

Cairnloop's AI drafting engine prepares a suggested reply for the conversation. The draft appears in the conversation timeline as a Draft card in :pending status, surfaced via Cairnloop.Automation.

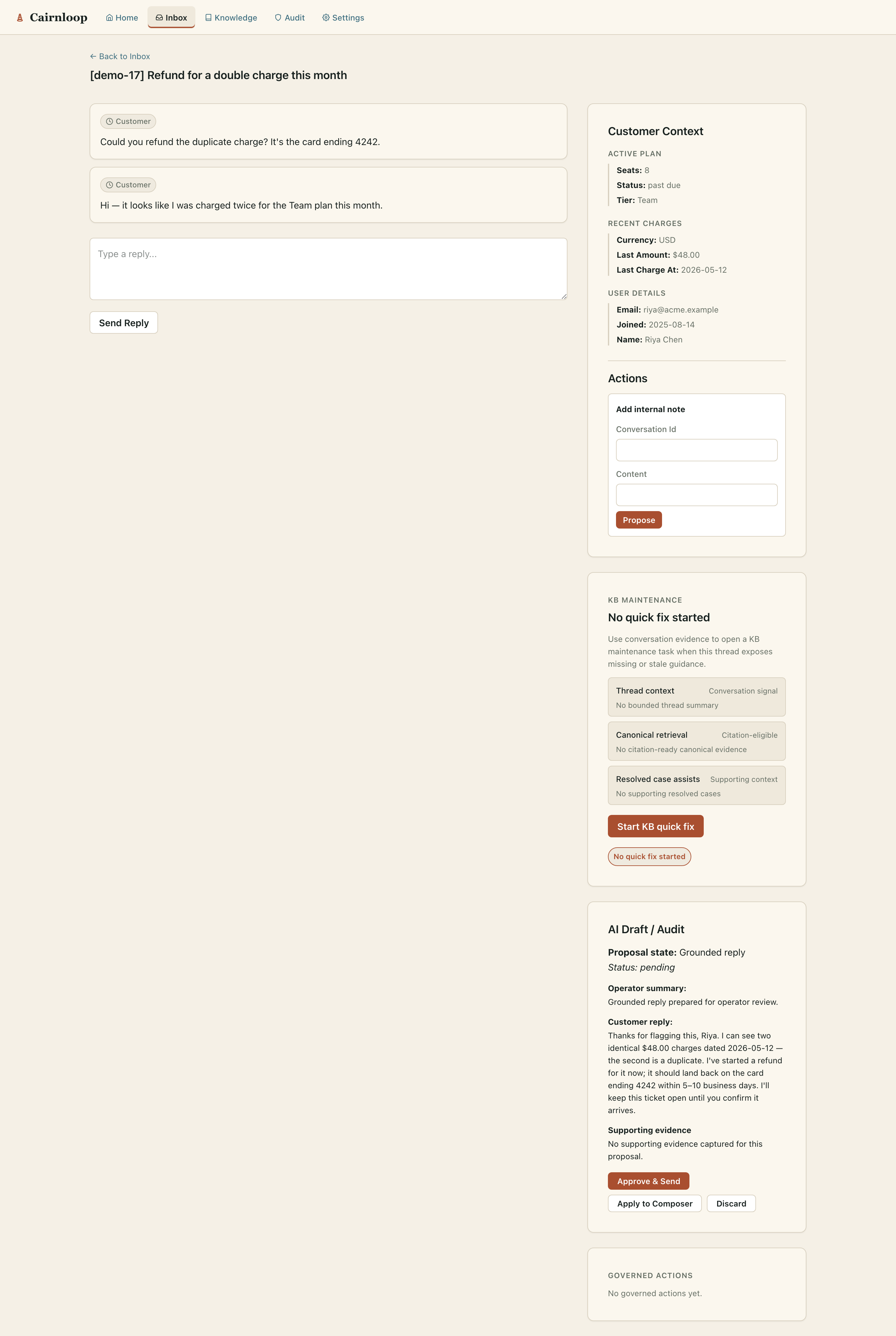

Screen region: The AI draft card shows the proposed reply text, the draft source (knowledge base articles or prior resolved cases that grounded the reply), and two actions: "Approve" and "Dismiss". An approval badge shows that a human decision is required before anything is sent to the customer.

The operator reviews the draft text and evidence, then clicks "Approve". The draft status transitions to :approved. The approved reply is appended to the conversation timeline and becomes part of the durable support record.

No AI reply is sent to the customer without explicit operator approval. This is the human-in-the-loop (HITL) guarantee at the reply layer.

Stage 5: Governed tool proposal approve

The operator encounters a situation requiring a structured action — for example, updating an account field or triggering a downstream system event. Cairnloop's governed-tool contract routes this through Cairnloop.Governance.propose/3, which records a durable ToolProposal row with a snapshotted risk tier, approval mode, and input before any execution occurs.

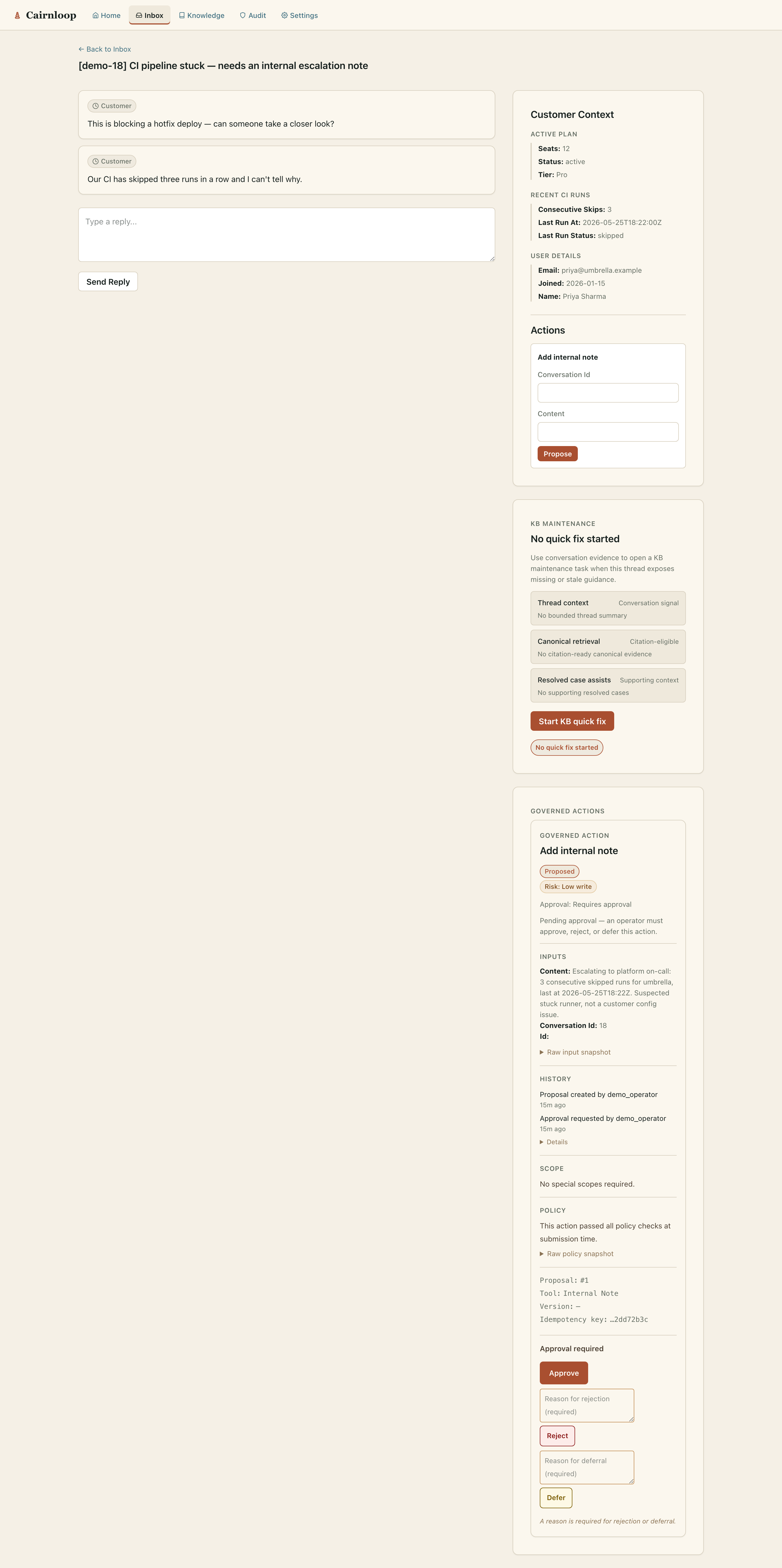

Screen region: The conversation timeline shows a governed-action card in :pending_approval state. The card displays the tool title, a risk tier chip (e.g., "Low Write"), the proposed inputs, and an approve/reject affordance. Trust facts are snapshotted at proposal time and do not change between now and execution.

The operator reviews the proposal and clicks "Approve". The approval state machine in Cairnloop.Governance records the decision via Governance.approve/3, transitions the ToolApproval record, and enqueues the next step via Oban.

No governed action executes inline. Every proposal waits for explicit operator sign-off before the execution worker runs.

Stage 6: ToolExecutionWorker reaches :success

With approval granted, Cairnloop.Workers.ToolExecutionWorker runs the approved action. The worker applies three-layer at-most-once idempotency: Oban unique keys, a terminal guard on the worker itself, and a SHA-256 per-attempt run key.

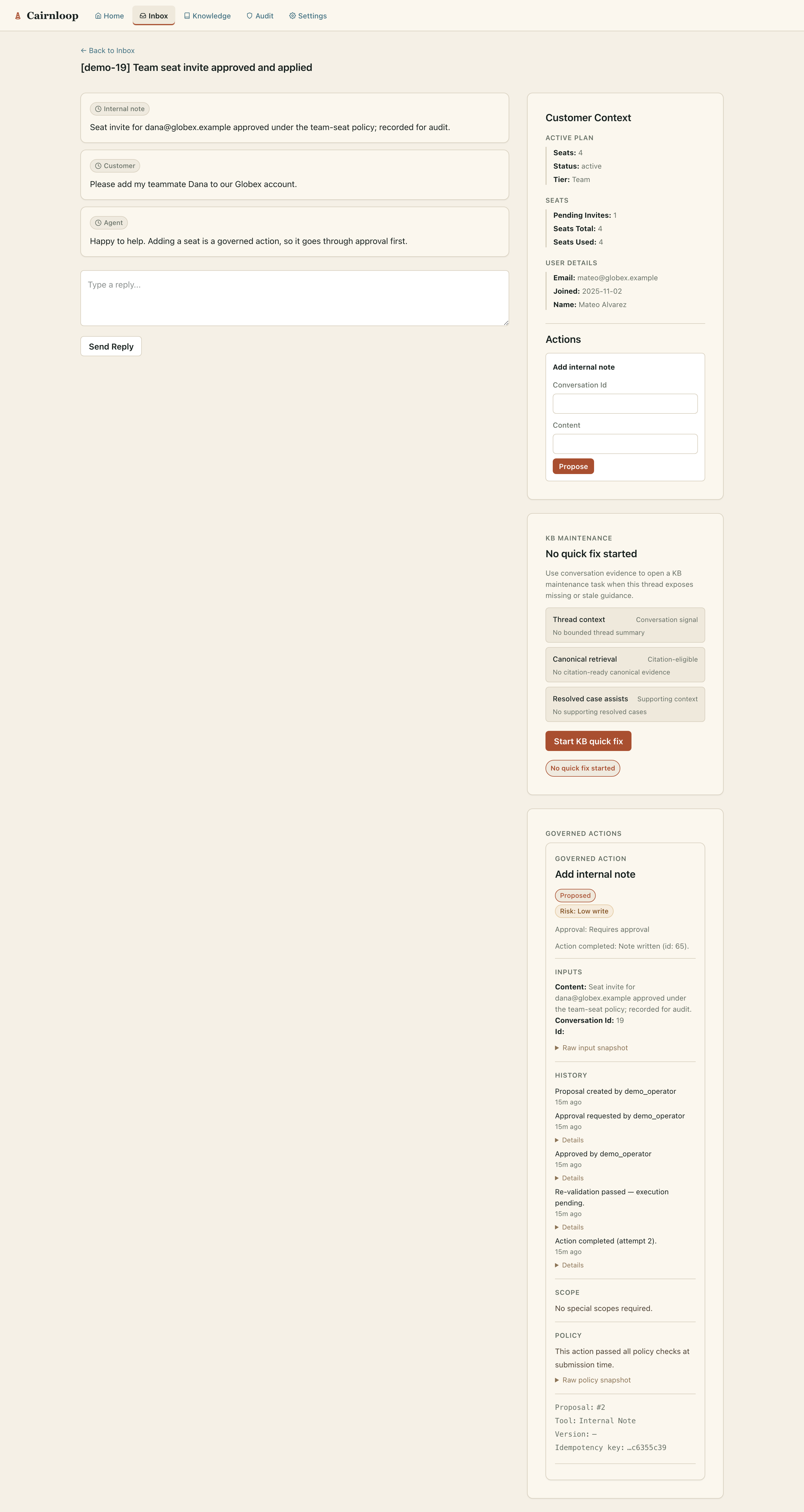

Screen region: The governed-action card in the conversation timeline updates to show "Action completed" with an execution timestamp. The risk tier chip changes to a success state. A full append-only ToolActionEvent history is recorded on the proposal.

The execution result is part of the durable conversation record. If the worker were to fail or be retried, the idempotency guarantees prevent the action from running more than once.

Stage 7: Resolve the conversation

The operator closes out the support thread by resolving the conversation. Cairnloop calls Cairnloop.Chat.resolve_conversation/2 directly (resolution is a domain function, not a LiveView event), which transitions the Conversation status to :resolved and records the resolution timestamp and actor.

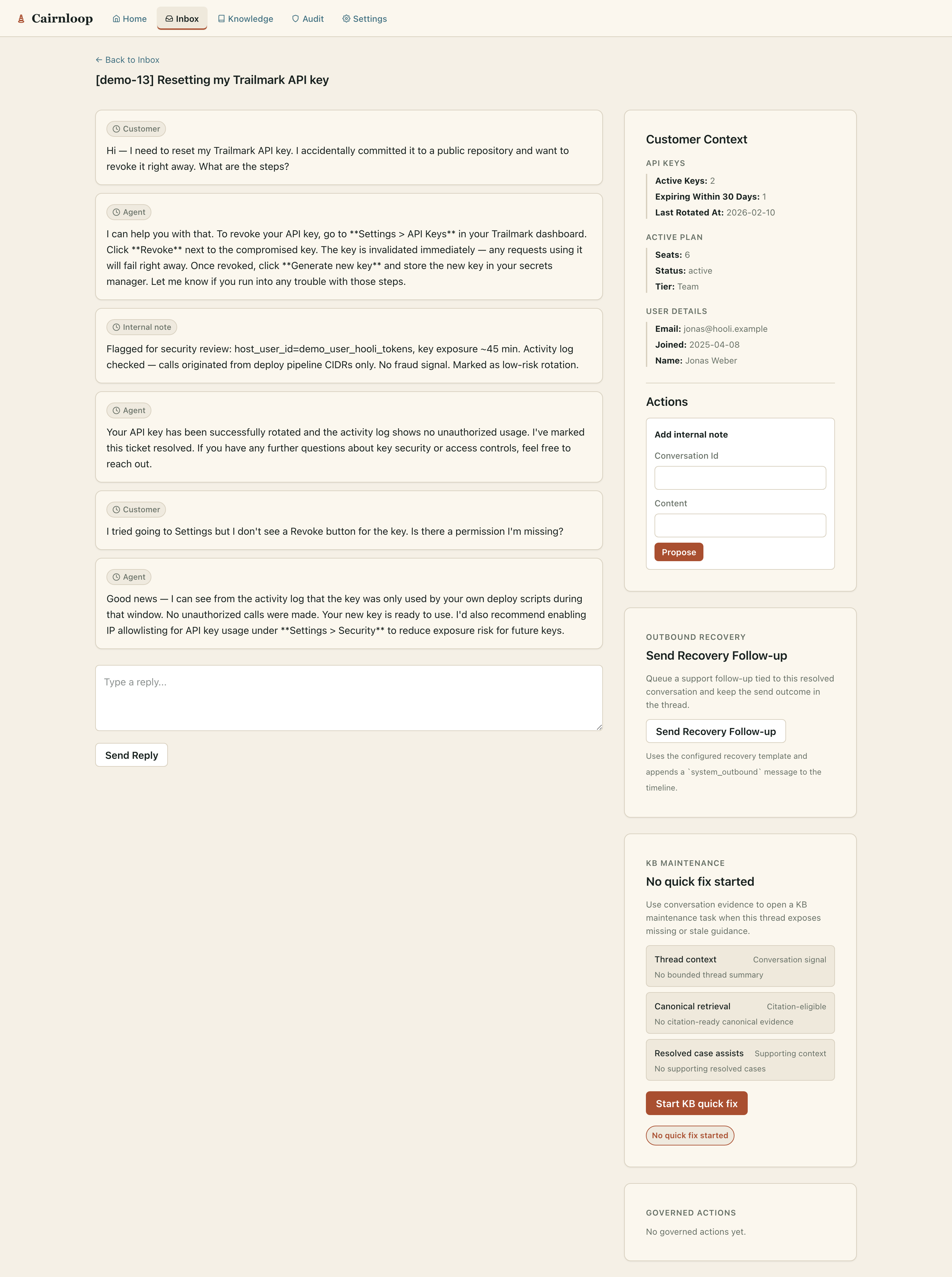

Screen region: The conversation status chip in the workspace header changes to "Resolved". The conversation becomes ineligible for further AI drafting. A resolution timestamp and operator identifier appear in the thread metadata rail.

At resolution, Cairnloop emits both a bounded :telemetry span and a [:cairnloop, :conversation, :resolved] domain event. The host Notifier behaviour receives on_conversation_resolved/2 — see Host Integration for the full callback set.

Stage 8: Outbound trigger from the sidebar

Now that the conversation is resolved, the operator notices a recovery follow-up opportunity in the sidebar. The sidebar renders a "Send Recovery Follow-up" button for resolved conversations that have not yet received a follow-up outbound message.

Screen region: The right rail of the resolved conversation shows a "Send Recovery Follow-up" button. Clicking it opens a confirmation affordance that previews the outbound message body (rendered from the configured outbound_recovery_template_id).

The operator confirms and Cairnloop calls Cairnloop.Outbound.trigger/2, which:

1. Appends a system_outbound message to the conversation timeline (with role: :system_outbound).
2. Enqueues an OutboundWorker Oban job that routes through the host's Notifier.on_outbound_triggered/2.

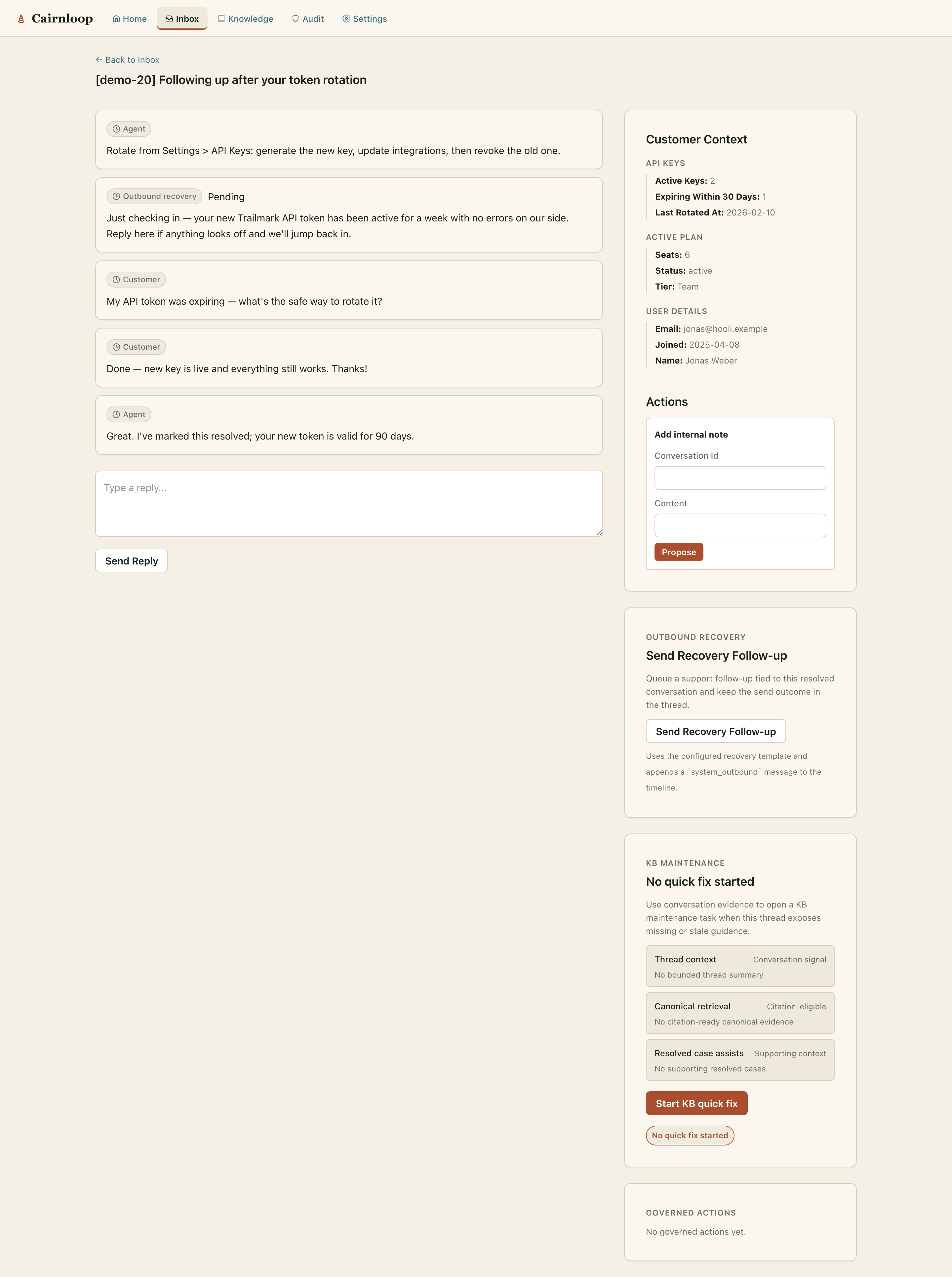

Screen region: A new outbound bubble appears in the conversation timeline with a "Pending" delivery chip. After the Oban worker runs, the chip transitions to "Sent" or "Failed" depending on the Notifier return value.

Stage 9: Bulk recovery

The operator navigates back to /support and realizes there are several more resolved conversations that need follow-up. Cairnloop supports bulk outbound via InboxLive multi-select.

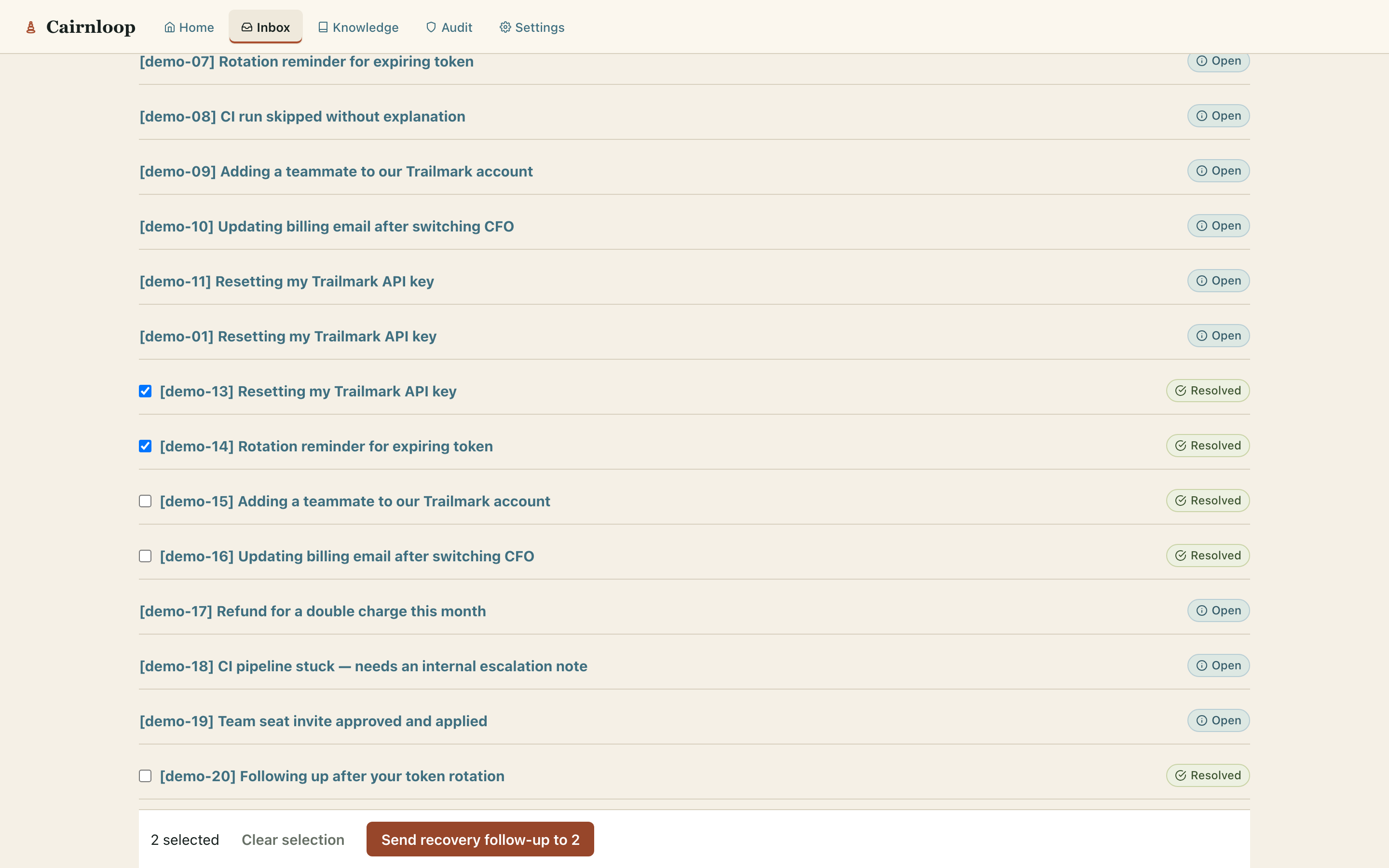

Screen region: In the inbox, each row has a checkbox. The operator selects multiple resolved conversations. A bulk action bar appears at the bottom of the inbox listing the selected count and a "Send recovery follow-up" button.

The operator clicks "Send Recovery Follow-up". A confirmation modal appears:

Screen region: The modal shows a preview of the outbound message body, a sample of the first five recipient identifiers, and a count of the total cohort size. If the cohort exceeds Cairnloop.Outbound.max_batch_size (25), a fail-closed refusal banner replaces the confirm button — the bulk send is refused rather than silently capping the batch.

The operator confirms. Cairnloop calls Cairnloop.Outbound.bulk_trigger/2, which:

1. Records a BulkEnvelope audit row with status :submitted (or :refused_cap_exceeded if the cap was exceeded).
2. Enqueues one OutboundWorker Oban job per recipient, each with an at-most-once Oban unique key scoped to (conversation_id, template_id, bulk_envelope_id).

Screen region: The bulk action bar disappears and the inbox deselects all rows. Each recipient conversation now has a pending outbound bubble in its timeline. Operators can inspect the BulkEnvelope row via the Governance audit facade (Cairnloop.Governance.list_recent_bulk_outbound_envelopes/1).

This walkthrough covers all nine stages of the JTBD lifecycle from first customer message through bulk recovery fan-out. The same sequence is exercised in CI by the integration smoke test at test/integration/golden_path_test.exs.

Beyond the thread: the supporting surfaces

The same operator dashboard exposes the surfaces that turn day-to-day support into durable knowledge and an auditable trail.

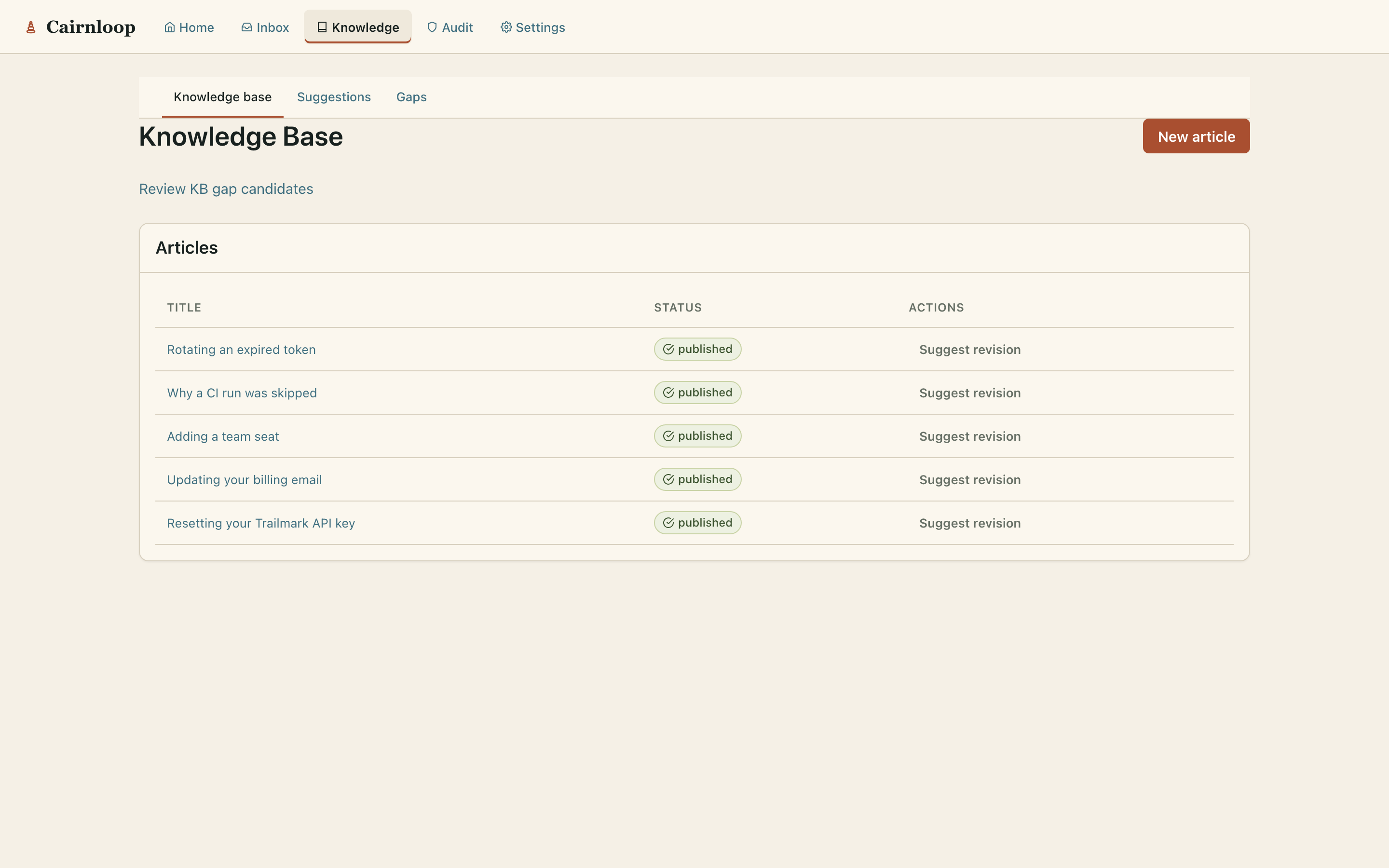

Knowledge base (/support/knowledge-base) — published articles and their revision history:

Knowledge gaps (/support/knowledge-base/gaps) — recurring unanswered patterns surfaced from real conversations, ready to become new articles:

Audit log (/support/audit-log) — the append-only timeline of every governed-action event, newest first:

Settings (/support/settings) — MCP tokens, Notifier health, the retrieval index, and Oban job state:

Refreshing these screenshots: boot the seeded example app (cd examples/cairnloop_example && mix ecto.reset && mix phx.server) and run the capture tool in examples/cairnloop_example/screenshots/ (npm install && npm run capture). It drives the demo with Playwright and rewrites guides/assets/. The capture is non-gating and asserts nothing — the deterministic test/integration/golden_path_test.exs remains the source of CI truth.
